DUAL SPORT FITNESS
TAKES YOU ANYWHERE

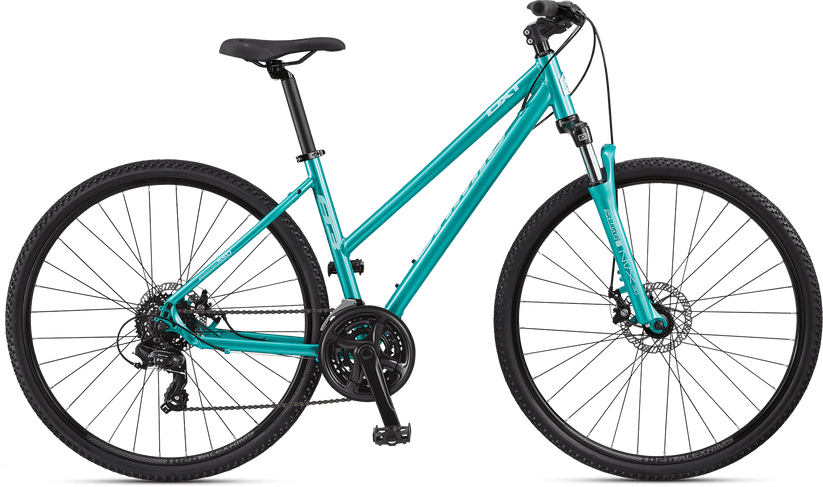

The dual-sport DXT’s are pumped-up, go-anywhere/do-anything versions of our Allegro fitness bikes. With more gearing range to take on steeper hills and tougher terrain. Wider tires with a trail-capable tread for access to more riding areas, both paved and packed. And disc brakes and suspension forks for real off-road exploration and off-pavement adventure
GIVING YOU A BREAK
The advantages of disc brakes over rim brakes on a versatile bike like the DXT far exceed their sole disadvantage, weight gain. Besides their incredible power and modulation, they’re just plain safer, especially in the rain. Once rims get wet or muddy, using friction to stop the wheel at its circumference is less efficient than using friction to stop a less wet or muddy small diameter disc near the center of the wheel from rotating. And eliminating the rim from braking surface duties results in a longer lasting wheel.
MODEL HIGHLIGHTS
| Frame | Size Specific Design 6061 aluminum with fast back rear triangle, 1 1/8” head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets. |
| Fork | SR/Suntour NVX-DS, aluminum lowers, coil spring, 28mm stanchions, 1-1/8” steerer, 75mm travel |
| Headset | Internal Cup, threadless, 1 1/8” |
| Wheels | Alex TD26 disc specific double wall alloy rims, 32H, alloy disc hubs with QR and 14g black electroplated spokes |
| Tires | CST Dual Sport Tire, 700 x 42c |
| Derailleurs | Shimano TY300 rear and TY510 top swing front |
| Shift levers | Shimano Rapid Fire SL-EF500, 2-speed |
| Chain | KMC Z7 |
| Cassette | Shimano CS-HG200, 7-speed, 12-32T |
| Crankset | Forged alloy crank with chain guard, 48/38/28T, 170mm |
| BB Set | VP sealed cartridge, 68 x 122.5mm |
| Pedals | Platform style |
| Brakeset | Tektro MD-280 cable-actuated disc brakes with 160mm stainless 6-bolt rotors and Shimano EF41 levers |
| Handlebar | Jamis Riser bar, double-butted aluminum, 25.4 x 10 ̊ sweep x 20mm rise x 640mm (15”), 660mm (17-23”) |
| Stem | Jamis Trekking, 3D forged alloy, 15 ̊ rise, Length-60mm (15- 17”), 90mm (19-23”) |
| Grips | ERGO Type Grip |
| Seat Post | Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin |
| Saddle | NEW Jamis Touring with SL cover |
| Sizes | 15”, 17”, 19”, 21”, 23” |
| Color | Smoke |
| Weight | 32.0 lbs |
