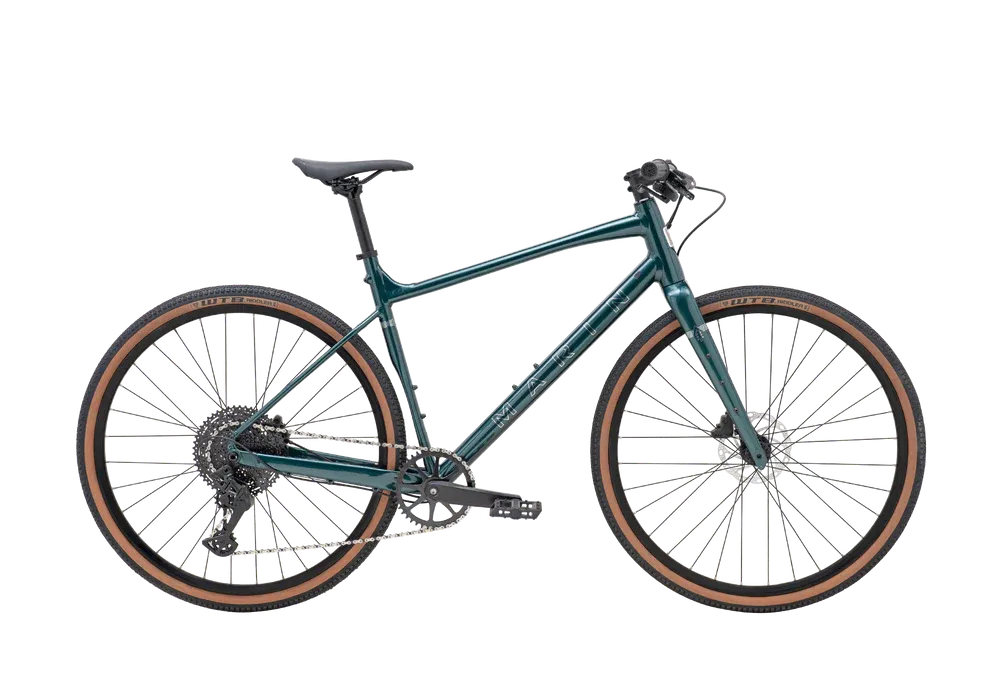

MARIN DSX 1 '26
SKU 31822_sku
$1 199.00
2026
A flat-bar gravel bike with the heart of "Let's do it all!"
Color
Size
In stock: 1 available
Product Details
Brand: MARIN
UPC: 843346134684
Hopping up to a higher-spec Series 3 aluminum frame and a carbon fiber fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 10-speed 1X Shimano CUES drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Frame
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Rim
Marin Aluminum Double Wall, 21mm Inner, Disc Specific
Hub Rear
Forged Aluminum Alloy, 142x12mm, Disc Specific, 32H
Hub Front
Forged Aluminum, 100x12mm, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
WTB Riddler, 700Cx45mm
Derailleur Rear
Shimano CUES U6000GS, w/Clutch
Shift Lever
Shimano CUES 10-speed
Crankset
Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC LG
Cassette
Shimano CUES CSLG300, 10-Speed, 11-48T
Brakes Front
Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
Brakes Rear
Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
Brake Levers
Tektro Hydraulic
Handlebar
Marin MiniRiser
Stem
Marin 3D Forged Alloy
Grips
Marin MTB
Headset
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
Marin Alloy
Saddle
Marin DSX
Pedals
Nylon Platform
| Small | Medium | Large | XLarge | |
|---|---|---|---|---|
| AStack | 544.4 | 572.5 | 600.6 | 628.7 |
| BReach | 380 | 405 | 420 | 435 |
| CHeadtube angle | 69.5° | 69.5° | 69.5° | 69.5° |
| DHeadtube length | 120 | 150 | 180 | 210 |
| ESeattube length | 430 | 430 | 520 | 558 |
| FSeattube angle | 74° | 74° | 74° | 74° |
| GToptube effective | 536.1 | 569.2 | 592.2 | 615.3 |
| HBb height | 279.5 | 279.5 | 279.5 | 279.5 |
| IBb drop | 80 | 80 | 80 | 80 |
| JChainstay | 425 | 425 | 425 | 425 |
| KWheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| LStandover height | 658.76 | 700.51 | 730.39 | 758.5 |
| MFork offset | 50 | 50 | 50 | 50 |
| NSeatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| OHandlebar width | 640 | 680 | 680 | 680 |
