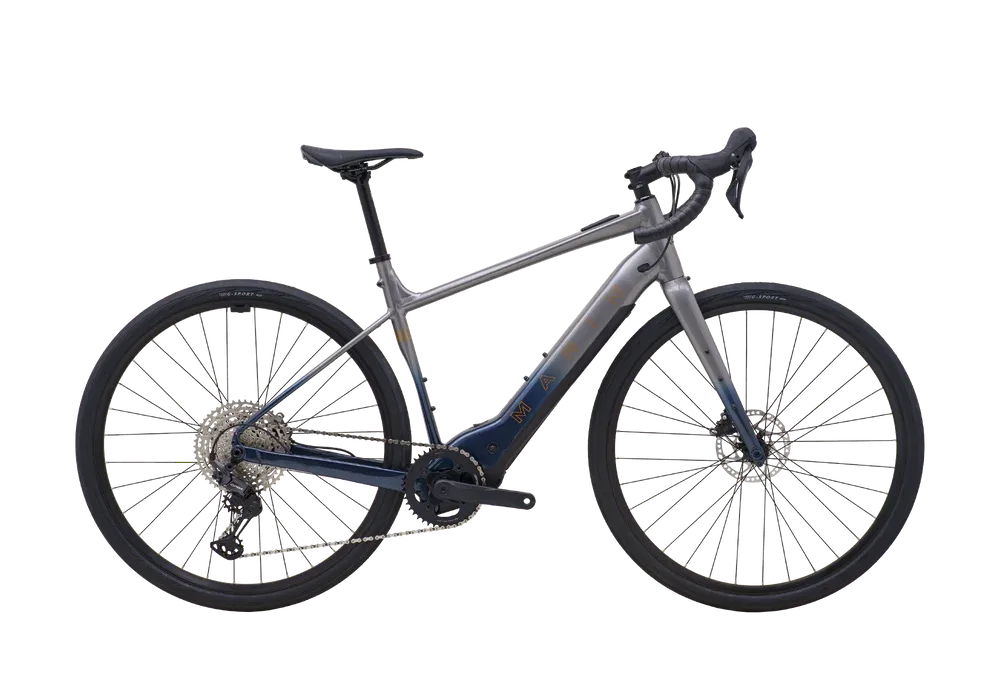

MARIN LOMBARD E1 '26
SKU 31558_sku
$4 299.00
New for 2026!
Gravel / All-Road E-Bike! Bosch SX Sprint, 250W, 55Nm, Class 3 (28mph, 45Km/h) Drive System.
Color
Size
In stock: 1 available
Product Details
Brand: MARIN
UPC: 843346130693
With a Bosch SX Drive Unit as the beating heart and the consistent and all-weather power of hydraulic disc brakes and reliable shifting components make the Lombard E1 ready for daily use on or off the tarmac.
High volume tires and the option to run a dropper seat post make the Lombard E a steadfast companion whether commuting daily in the city, or spinning for hours in the country.
Range
14-85 miles / 22-137km
Battery
Bosch Compact Power Tube 400, 400Wh
Motor
Bosch SX Sprint, 250W, 55Nm, Class 3 (28mph, 45Km/h)
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Frame
All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Rim
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Hub Rear
Forged Aluminum Alloy, 142x12mm, Disc, 32H
Hub Front
Forged Aluminum Alloy, 100x12mm, Disc, 32H
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co., G-Sport, 700x44, Tubeless Compatible
Derailleur Rear
Shimano GRX RD-RX822, 12-speed, Clutch
Shift Lever
Shimano GRX STRX610, 12-speed
Crankset
Forged Alloy, 42T Steel Chainring
Chain
KMC E12S
Cassette
Shimano CSM6100, 10-51T
Brakes Front
Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
Brakes Rear
Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano GRX STRX610
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Stem
Marin 3D Forged Alloy
Grips
Marin Shock Absorbing Perforated Tape
Headset
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
Marin Alloy, 27.2
Saddle
Marin Beyond Road Concept Elite
Pedals
Flats
Extras
Removable kickstand mount
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| AStack | 564.7 | 583.5 | 607 | 639.9 |
| BReach | 385 | 405 | 415 | 425 |
| CHeadtube angle | 70° | 70° | 70° | 70° |
| DHeadtube length | 130 | 150 | 175 | 210 |
| ESeattube length | 460 | 485 | 505 | 530 |
| FSeattube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| GToptube effective | 552.2 | 577.8 | 594.8 | 614.5 |
| HBb height | 282 | 282 | 282 | 282 |
| IBb drop | 80 | 80 | 80 | 80 |
| JChainstay | 435 | 435 | 435 | 435 |
| KWheelbase | 1042.2 | 1069 | 1087.6 | 1109.6 |
| LStandover height | 686.7 | 702 | 714.5 | 741.7 |
| MFork offset | 50 | 50 | 50 | 50 |
| NSeatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| OHandlebar width | 440 | 460 | 460 | 480 |
| PStem length | 70 | 70 | 70 | 70 |
| QCrank length | 170 | 170 | 175 | 175 |
