Mountainside Ski & Sports

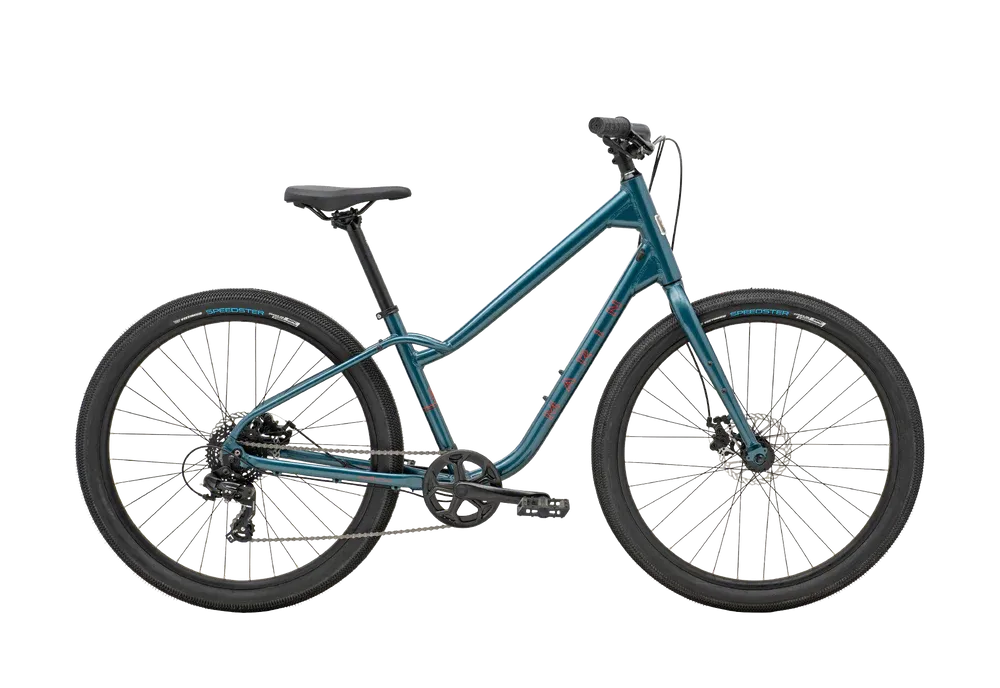

MARIN STINSON 1 27.5 '26
SKU 5978_sku_main
$699.00
2026
Style! - Comfort! - Easy! This one has it all!
Color
Size
In stock
Product Details
Brand: MARIN
The Stinson brings a new level of comfort and control to your ride. This model has a lightweight Series 1 aluminum frame with low standover, an ergonomic handlebar, plush saddle, and versatile, high-volume 27.5” tires with mixed tread for control on a variety of surfaces. Design features include our Comfort Control Geometry with upright seating and the ability to touch the ground with the forefoot, while maintaining proper saddle height for pedaling efficiency.
Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Frame
Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Rim
Marin Aluminum Double Wall, Disc Specific
Hub Rear
Forged Aluminum, 32H, Disc Specific
Hub Front
Forged Aluminum, 32H, Disc Specific
Spokes
14g Stainless Steel
Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Derailleur Rear
Shimano Tourney, 7-Speed
Shift Lever
Shimano Altus 7-Speed RapidFire
Crankset
Alloy Crank, Steel 38T Chainring, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Cassette
Shimano CSHG200, 7-Speed, 12-32T
Brakes Front
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brakes Rear
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Handlebar
Marin Alloy, 25mm Rise, 18˚ Backsweep
Stem
Marin Alloy
Grips
Marin Adventure
Headset
FSA, TH No.10P
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin Comfort
Pedals
Nylon Platform
| S | M | L | XL | |
|---|---|---|---|---|
| AStack | 628.2 | 646.9 | 665.5 | 679.4 |
| BReach | 340 | 355 | 370 | 381.6 |
| CHeadtube angle | 68.5° | 68.5° | 68.5° | 68.5° |
| DHeadtube length | 210 | 230 | 250 | 265 |
| ESeattube length | 382 | 406 | 444 | 470 |
| FSeattube angle | 67° | 67° | 67° | 67° |
| GToptube effective | 606.7 | 629.6 | 652.5 | 670 |
| HBb height | 276.5 | 276.5 | 276.5 | 276.5 |
| IBb drop | 68 | 68 | 68 | 68 |
| JChainstay | 485 | 485 | 485 | 485 |
| KWheelbase | 1083.9 | 1106.2 | 1128.6 | 1145.65 |
| LStandover height | 618.44 | 618.48 | 674.72 | 675.89 |
| MFork offset | 40 | 40 | 40 | 40 |
| NSeatpost diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| OHandlebar width | 700 | 700 | 700 | 700 |
| PStem length | 45 | 45 | 45 | 45 |
| QCrank length | 170 | 170 | 170 | 170 |
