MARIN STINSON E ST 27.5 CLASS 2 '26
SKU 31757_sku
$1,899.00
New for 2026!
Color
Size
True bike shop quality E-Bike with a THROTTLE!
In stock: 2 available
Save this product for later

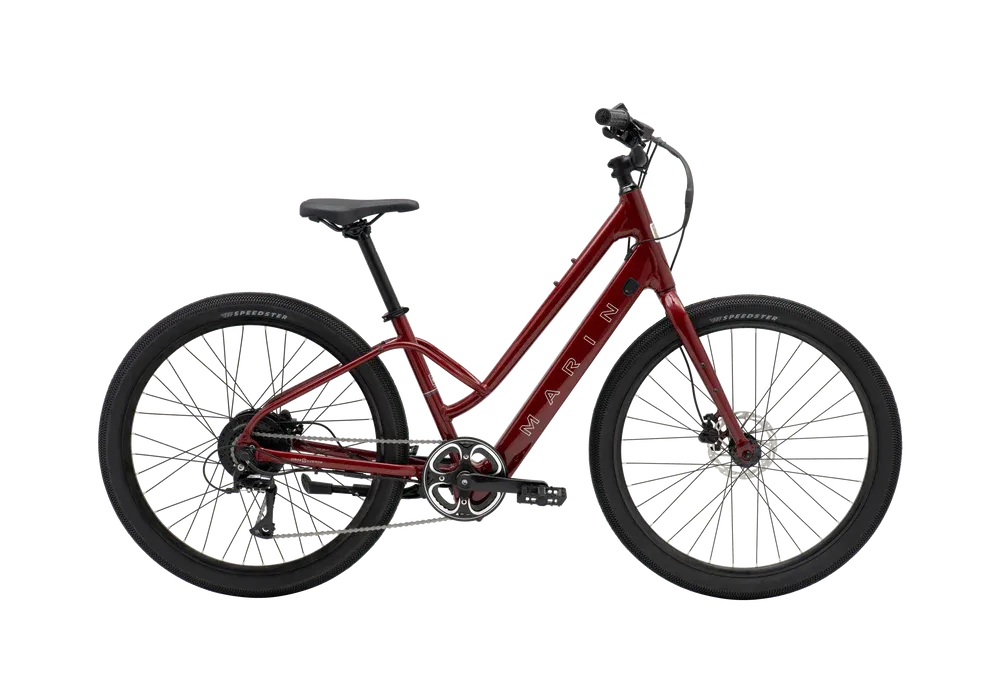

MARIN STINSON E ST 27.5 CLASS 2 '26
Product Details
Brand: MARIN
UPC: 843346139665
Stinson Electric ST with THROTTLE!
The step-through Stinson E ST is built for good times – coffee dates, farmers markets or rail trail and neighborhood adventures.
A powerful and smooth Bafang motor with a 62-mile range puts fun first. Need a boost? The new throttle crushes traffic lights and hill starts. The step-through frame lets you touch down when needed – no tiptoe panic, just relaxed confidence. Stop on command with hydraulic disc brakes and iron out bumps with 2.35” wide tires. And that sleek new high-rise bar? Pure style points.
Specifications:
SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION
App
Bafang Go App
Range
15-62 miles/25-100km
Switch
Handlebar Mount LCD Switch & Display
Battery
Bafang 340Wh, 36V, In-tube
Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Frame
Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Rim
Marin Aluminum Double Wall, Disc Specific
Hub Rear
Bafang 250 Watt Hub Motor, 40Nm, 36H
Hub Front
Forged Aluminum Alloy, 32H
Spokes
14g Stainless Steel
Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Derailleur Rear
Shimano Acera, 8-Speed
Shift Lever
Shimano Altus 8-Speed RapidFire
Crankset
Alloy Crank, Steel 38T Chainring, Ring Guard
Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Cassette
SunRace 8-Speed, 11-34T
Brakes Front
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brakes Rear
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers
Alloy, Long Pull
Handlebar
Marin Alloy, 25mm Rise, 18˚ Backsweep
Stem
Marin Alloy
Grips
Marin County
Headset
FSA, TH No.10P
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin Comfort
Pedals
Nylon Platform
| S | M | L | |
|---|---|---|---|
| AStack | 628.2 | 629.6 | 652.5 |
| BReach | 340 | 355 | 370 |
| CHeadtube angle | 68.5° | 68.5° | 68.5° |
| DHeadtube length | 210 | 230 | 250 |
| ESeattube length | 382 | 406 | 444 |
| FSeattube angle | 67° | 67° | 67° |
| GToptube effective | 606.7 | 629.6 | 652.5 |
| HBb height | 286.3 | 286.3 | 286.3 |
| IBb drop | 68 | 68 | 68 |
| JChainstay | 485 | 485 | 485 |
| KWheelbase | 1084 | 1106 | 1129 |
| LStandover height | 520.4 | 520.4 | 520.4 |
| MFork offset | 40 | 40 | 40 |
| NSeatpost diameter | 30.9 | 30.9 | 30.9 |
| OHandlebar width | 700 | 700 | 700 |
| PStem length | 45 | 45 | 45 |
| QCrank length | 170 | 170 | 170 |
