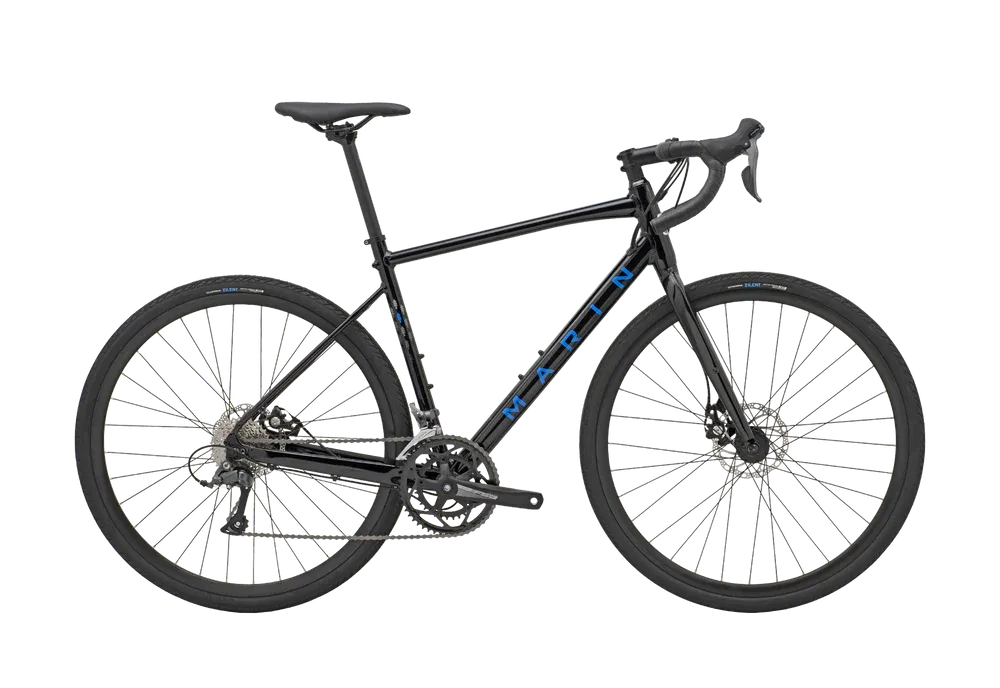

Marin Gestalt '25
SKU 4963_sku_main
$999.00
2025
Budget friendly gravel / all-road grinding!
Color
Size
In stock
Product Details
Brand: MARIN
Marin's hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do.
Our most affordable Gestalt, we’ve taken our Series 2 aluminum frame and created a killer value all-terrain explorer that won’t stretch your budget. Aluminum straight-blade fork, WTB Exposure 36mm wide tires, Tektro mechanical disc brakes, Shimano Claris 2x8-speed groupset and plenty of quality Marin components all add up to bags of value and heaps of fun.
Fork
6061 Aluminum, Straight-Blade, Post-Mount Disc
Frame
Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Rim
Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific
Hub Rear
Forged Aluminum Alloy, 6-Bolt Disc, 24H
Hub Front
Forged Aluminum Alloy, 6-Bolt Disc, 24H
Spokes
14g Black Stainless Steel
Tires
WTB, Exposure Comp, 700x36
Derailleur Rear
Shimano Claris 8-Speed
Shift Lever
Shimano Claris 2x8-Speed
Crankset
FSA Tempo Compact, 50/34T
Bottom Bracket
Sealed Bearing Square Taper
Chain
KMC Z8
Cassette
SunRace 8-Speed, 11-32T
Brakes Front
Tektro MD-C400 Road Mechanical Disc, 160mm Rotor
Brakes Rear
Tektro MD-C400 Road Mechanical Disc, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Stem
Marin 3D Forged Alloy
Grips
Marin Perforated Tape
Headset
FSA No.8B
Seatpost
Marin Alloy, 27.2mm
Saddle
Marin Beyond Road Concept
Pedals
Nylon Platform
| 52 | 54 | 56 | 58 | 60 | 50 | |
|---|---|---|---|---|---|---|
| AStack | 568 | 582 | 601 | 620 | 641 | 552 |
| BReach | 372 | 377 | 387 | 402 | 404 | 367 |
| CHeadtube angle | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71° |
| DHeadtube length | 135 | 150 | 170 | 190 | 210 | 120 |
| ESeattube length | 480 | 500 | 520 | 540 | 560 | 460 |
| FSeattube angle | 74° | 73.5° | 73.5° | 73.5° | 73° | 74.5° |
| GToptube effective | 535 | 550 | 565 | 585 | 600 | 520 |
| HBb height | 276 | 276 | 276 | 276 | 276 | 276 |
| IBb drop | 78 | 78 | 78 | 78 | 78 | 78 |
| JChainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| KWheelbase | 1014 | 1024 | 1040 | 1060 | 1070 | 1008 |
| LStandover height | 732 | 755 | 775 | 794 | 814 | 714 |
| MFork offset | 50 | 50 | 50 | 50 | 50 | 50 |
| NSeatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| OHandlebar width | 420 | 440 | 440 | 460 | 460 | 420 |
| PStem length | 70 | 90 | 90 | 110 | 110 | 70 |
| QCrank length | 170 | 175 | 175 | 175 | 175 | 170 |
